Placing balconies

A balcony hangs off a wall as a deck with guarding, and is drawn in plan, in 3D and in sections, elevations and callouts.

A balcony is picked on its own, even while its wall is selected: click it and only the balcony is selected, and a drag moves the balcony. Select the wall to take the wall and its balcony together.

If the wall is inside a group or component, enter it before placing the balcony. A closed group or component stays whole and does not expose its walls as hosts.

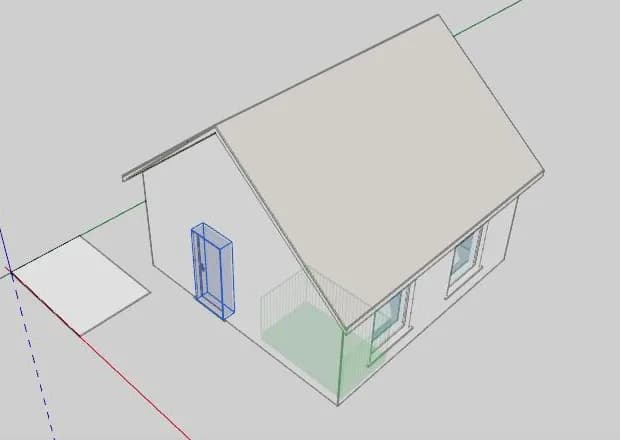

A balcony preview, a pale deck with guarding, following the pointer along the wall of a small gabled house.
The balcony preview follows the pointer along the wall.

To place one

  1. Click Balcony on the Build toolbar.
  2. Move along the wall you want it on. A preview of the deck follows the pointer along that wall, and it hangs off the face the pointer is on. Away from any wall, a red preview floats with the pointer to show the tool is armed but cannot place yet.
  3. Click to place it. The balcony is selected, ready for its Parameters.

The deck is centred where you click, and Linea holds it clear of the wall's ends. It hangs off the wall's outer face, so its depth is measured out from there. The next balcony you place starts with the numbers of the last one.

In a section, an elevation or a callout, click the wall face you can see in the drawing. The balcony goes on that wall, on whichever storey the wall belongs to.

How high it goes

The deck goes to the floor of the level you are working on, so a balcony placed with Floor 1 active sits at Floor 1's floor, even on a wall that starts on the Ground Floor. In 3D the preview follows the pointer up the wall, and the deck snaps onto the floor of each level the wall passes (the active level first) when the pointer comes within a few centimetres of it. In plan the pointer has no height, so the deck takes the active level's floor. To set an exact height, type it while the preview is showing and press Enter: it is measured up from the active level's floor, holds while you slide along the wall, and Escape releases it.

Where a balcony can go

A balcony hangs off a straight wall on the level you are working on, long enough for its width, with that stretch of the face free. If a spot won't take one, a message says why: the wall has no length yet, it is curved, it belongs to another level, it is too short for the width, or another balcony already occupies that stretch. Two balconies on opposite faces of the same wall sit together happily. Click in empty space with the tool armed and it asks you to hover a wall first.

On a massing block

A balcony also goes on the side face of a mass, the way a door or window does. Hover a side face of a mass on the level you are working on and the preview hangs off that face; click to place it. The deck follows the mass: move the mass or reshape its face and the balcony comes with it. Two balconies cannot overlap on the same face.

To change it

Select the balcony and open the Parameters row. Dimensions holds Side (Front or Back, which face it projects from), Width, Depth, Deck thickness, Top offset (the deck's top measured from the wall's base; negative sits below it) and Thermal break (how far the deck's inner edge stands clear of the wall). Guarding has a switch and, when on, a single Look dropdown (Classic, Traditional, Glass + timber, Frameless glass and Utility) and a Guarding height. It is the same Look list the Railing tool uses, so a balcony guard matches the railings around it, and changing the look redraws the guard in plan, 3D and the exports. Guarding is on by default, as a Classic baluster guard.

A balcony follows its wall: move or delete the wall and the balcony goes with it. To hang the same balcony off a different wall, select it, right-click and choose Pick New Host, then click the new wall; it keeps its settings. In plan, the deck on the level below shows dashed.
